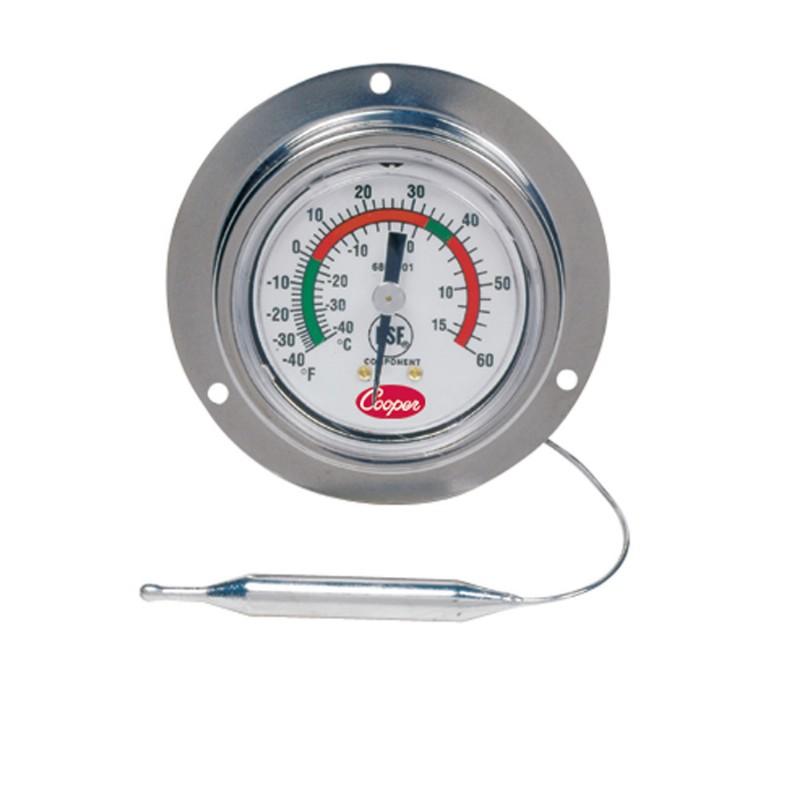

2" Back Flange Back Connect Panel Thermometer
Cooper-Atkins Model 6812-01
The 6812-01 features a back flange and back connection. It's designed for surface mount applications where only a hole large enough to accomodate the sensor bulb is required. The back flange has 3.160" diameter bolt circle and projects 1.2" from panel. It has a 2" dial diameter and 48" capillary length. Ideal for commercial and retail refrigeration and freezing.
| 2" |
| 48" |
| Back Flange for surface mounting |
| Back |
| Surface |
| NSF |
|
Temperature Range -40 to 60F, -40 to 15̴C
Recalibratable
Dual Scale Dial
Nickel/Tin plated bulb and capillary
Stainless steel case
Polycarbonate lens/bezel
Bright Buffed Flange
1 Year warranty
|
